- One-piece steel or timber panel
- Counterbalance spring mechanism
- Motorisable with the right operator

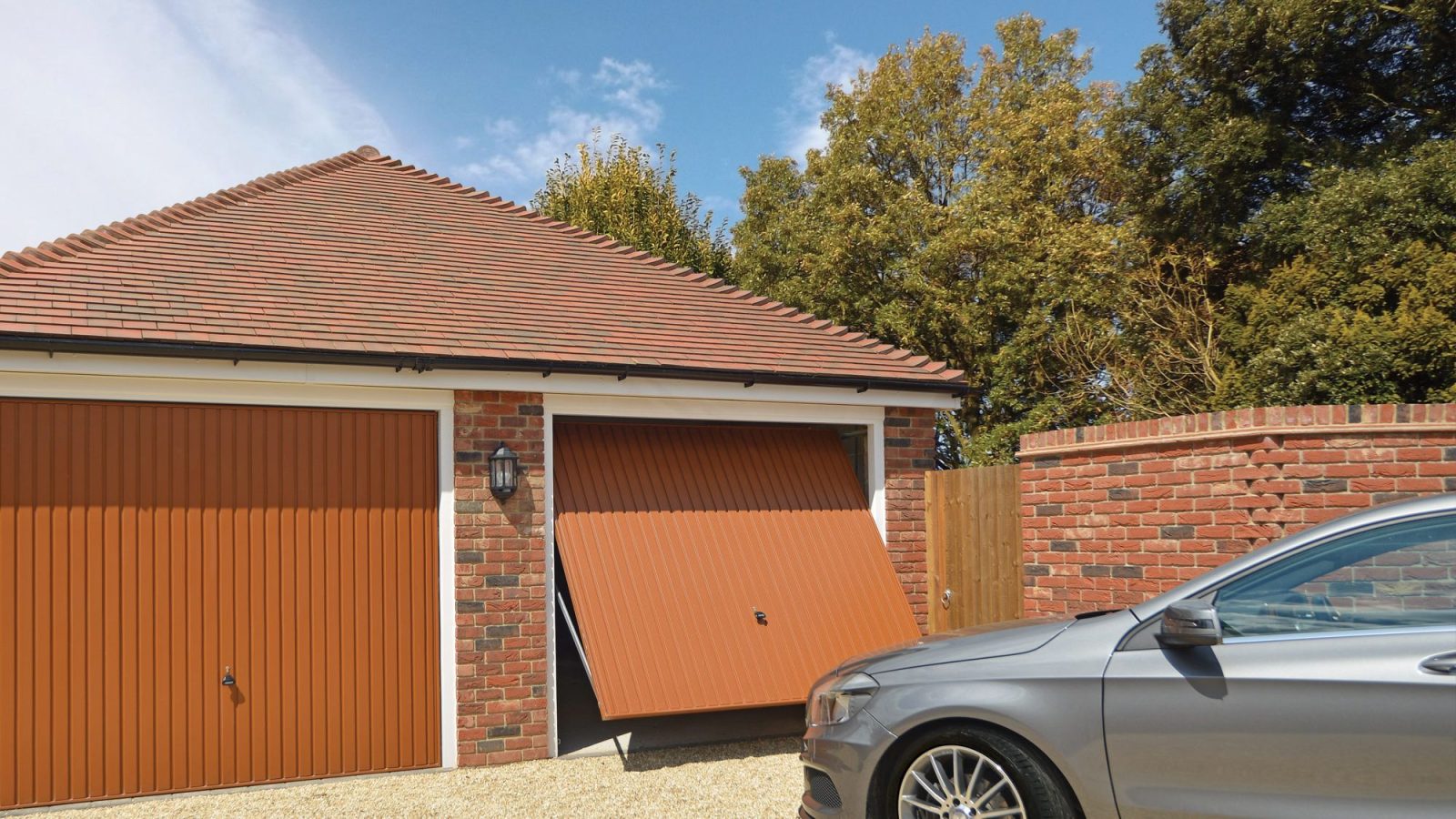

A tip-up garage door swings out and up in one panel, running back into the roof space on a simple frame. It is the door on a great many older Kempton Park houses, particularly through the central suburbs, Aston Manor, Birchleigh, Esther Park and Van Riebeeck Park, and it is still a sensible product where the geometry suits it.
Tip-up garage doors we supply in Kempton Park
- Steel tip-up doors in the traditional ribbed and panelled profiles.
- Aluminium tip-up doors where a lighter panel is wanted.
- Timber tip-up doors where the house calls for it.
- Single and double widths, on new or existing frames.
Where a tip-up door works and where it does not
It needs clear space in front of the opening, because the panel swings out before it lifts. If a car parks close to the door, or the driveway falls away from the garage, a sectional or roll-up door is the better answer. We will say so rather than fit a door that fouls a vehicle every morning.
The honest limitation under a flight path
A single-skin tip-up panel is the noisiest garage door type to operate and the least effective at keeping noise out. On a house in Bonaero Park or Rhodesfield where somebody is trying to sleep during the day, we will point that out and price an insulated sectional alongside it, because the difference is real and worth knowing before you buy.
Replacing an old tip-up door
Most tip-up doors we replace have gone out of balance, rusted at the bottom edge, or had the frame move. Where the frame is sound we fit a new panel to it, which is the cheapest route by a distance. Where it is not, the frame is replaced with the door and we say so up front.
Balance and safe operation
A tip-up door is held by tension on each side, and the balance is the whole safety story. An out-of-balance tip-up door is heavy to lift and can come down hard. We replace the tension components in matched pairs and set the balance so the door stays where you leave it.
Hail and storm damage on tip-up panels
A single large panel is the door type most likely to show hail damage, because there is nothing to break up the face. Where the profile is still made we can replace the panel on the existing frame, which is far cheaper than a full door.
Motorising a tip-up garage door
Tip-up doors can be automated with a rail-mounted operator and the correct arm, but only once the balance is right. Automating a heavy tip-up door is how operators get destroyed. We check the door by hand before quoting the motor.
What a tip-up garage door costs in Kempton Park
Usually the least expensive garage door for a given opening. Priced on width, panel material, finish, whether the frame is being replaced, and whether it is automated.
Common questions
About tip-up and up-and-over garage doors
Yes, and we still fit and repair a great many of them. They are the simplest mechanism we build: one counterbalanced panel, few moving parts, and cheap to repair. They remain a sensible choice for a detached garage where sealing is not critical.
That is how the mechanism works — the bottom of the panel arcs outward as it lifts. You need roughly a metre of clear space in front of the door. If you park close to the door, a sectional or roll-up door is the better fit.
Yes, with an operator that has a swing arm or a curved rail to follow the arc of the panel. The springs must be correctly balanced first — a heavy, badly balanced tip-up door will destroy a motor in months.
Almost always the counterbalance springs have fatigued or one has broken. It is a straightforward repair and should be done promptly, because an unbalanced tip-up panel can drop hard enough to injure someone.
